Predbat Components Documentation

This document provides a comprehensive overview of all Predbat components, their purposes, and configuration options.

Table of Contents

Overview

Predbat uses a modular component architecture where each component provides specific functionality such as database management, cloud API integration, web interfaces, and energy provider integrations. Each component can be enabled or disabled independently through your apps.yaml configuration file.

Component List

Database Manager (db)

Can be restarted: No

What it does (db)

Stores and manages all historical data for Predbat, including energy usage, sensor values, and system states. This allows Predbat to keep its own database of historical information independent of Home Assistant.

When to enable (db)

  • You want to retain data longer than Home Assistant keeps or you want to run Predbat without Home Assistant

Configuration Options (db)

Option Type Required Default Config Key Description
db_enable Boolean Yes - db_enable Set to true to enable the database, false to disable
db_days Integer No 30 db_days Number of days of historical data to keep in the database

Home Assistant Interface (ha)

Can be restarted: No

What it does (ha)

Provides the connection between Predbat and Home Assistant. This is the core communication channel that allows Predbat to read sensor data, control devices, and update its status in Home Assistant.

If you are using Predbat without Home Assistant then this interface layer just talks directly to the Database Manager.

When to enable (ha)

This component is always enabled and required for Predbat to function.

Configuration Options (ha)

Option Type Required Default Config Key Description
ha_url String No http://supervisor/core ha_url Home Assistant API URL (the default is for when using an HA add-on)
ha_key String No Auto-detected ha_key Home Assistant access token (auto-detected when running as add-on)
db_enable Boolean No False db_enable Enable database integration
db_mirror_ha Boolean No False db_mirror_ha Copy Home Assistant data into Predbat's database
db_primary Boolean No False db_primary Use Predbat's database instead of Home Assistant for the primary data source

Home Assistant History (ha_history)

Can be restarted: No

What it does (ha_history)

Retrieves and processes historical sensor data from Home Assistant's database (or from the Predbat database). This component handles all lookups of past energy usage, battery levels, and other historical information.

When to enable (ha_history)

This component is always enabled.

Configuration Options (ha_history)

No configuration required. This component automatically uses your Home Assistant connection.

Web Interface (web)

Can be restarted: Yes

What it does (web)

Provides a built-in web server that lets you view and manage Predbat through your web browser. Access dashboards, view battery plans, check logs, and edit configuration all from an easy-to-use web interface.

Configuration Options (web)

Option Type Required Default Config Key Description
port Integer No 5052 web_port Port number for the web server

How to access (web)

If you use Predbat as a Home Assistant add on then click 'Open Web UI' from the add-on or add Predbat Web UI to your side bar. If you run Predbat outside then you can access it from the port as configured: http://homename:5052

MCP Server (mcp)

Can be restarted: Yes

What it does (mcp)

Provides a programmatic API that allows AI assistants (like ChatGPT, Claude, or other MCP-compatible tools) to read and control Predbat. This enables you to use natural language commands to check status, adjust settings, or override plans.

When to enable (mcp)

  • You want to control Predbat through AI assistants
  • You're building custom integrations or tools
  • You want programmatic access to Predbat data

Security note (mcp)

The MCP server requires a secret key for authentication. Keep this secret secure and don't share it publicly.

CAUTION Predbat WebUI does not support https currently, so exposing this MCP port externally to your home network would be unwise.

Configuration Options (mcp)

Option Type Required Default Config Key Description
mcp_enable Boolean Yes False mcp_enable Set to true to enable the MCP server
mcp_secret String No predbat_mcp_secret mcp_secret Secret key for authentication - change this!
mcp_port Integer No 8199 mcp_port Port number for the MCP server

How to configure your MCP client (mcp)

Below is an example MCP configuration inside VSCode, but it will be similar in Cline/Claude/Cursor etc.

Example usage in VSCode
{
 "servers": {
  "predbat-mcp": {
   "url": "http://homeassistant.local:8199/mcp",
   "type": "http",
   "description": "Predbat Model Context Protocol Server",
   "headers": {
    "Authorization" : "Bearer predbat_mcp_secret",
   },
  }
 },
 "inputs": []
}

Available commands (mcp)

  • Get current system status
  • View and update configuration settings
  • Browse all entities
  • Retrieve battery plan data
  • Override plan for specific time periods
  • Access apps.yaml configuration

GivEnergy Cloud Direct (gecloud)

Can be restarted: Yes

What it does (gecloud)

Connects directly to the GivEnergy Cloud to control your GivEnergy inverter and battery. This allows Predbat to automatically set charge/discharge times, power limits, and read real-time data from your inverter without relying on Home Assistant integrations.

When to enable (gecloud)

  • You have a GivEnergy inverter
  • You want direct cloud-based control (more reliable than local control)
  • You have your GivEnergy Cloud API key
  • You want automatic control of your battery

Important notes (gecloud)

  • Requires a GivEnergy Cloud account and API key
  • Can also control GivEnergy EV chargers and smart devices

Configuration Options (gecloud)

Option Type Required Default Config Key Description
ge_cloud_direct Boolean Yes - ge_cloud_direct Set to true to enable GivEnergy Cloud control
api_key String Yes - ge_cloud_key Your GivEnergy Cloud API key
automatic Boolean No False ge_cloud_automatic Set to true to automatically configured Predbat to use GivEnergy Cloud direct (no additional apps.yaml changes required)

How to get your API key (gecloud)

  1. Log in to your GivEnergy account at https://www.givenergy.cloud
  2. Go to Settings → API Keys
  3. Generate a new API key
  4. Copy the key into your apps.yaml configuration

GivEnergy Cloud Data (gecloud_data)

Can be restarted: Yes

What it does (gecloud_data)

Downloads historical energy data from GivEnergy Cloud including consumption, generation, battery usage, and grid import/export. This provides accurate historical data for Predbat's calculations and predictions.

When to enable (gecloud_data)

  • You have a GivEnergy system
  • You want Predbat to use historical data from GivEnergy Cloud instead of from Home Assistant.

Configuration Options (gecloud_data)

Option Type Required Default Config Key Description
ge_cloud_data Boolean Yes - ge_cloud_data Set to true to enable historical data download
ge_cloud_key String Yes - ge_cloud_key Your GivEnergy Cloud API key (same as Cloud Direct)
ge_cloud_serial String No Auto-detected ge_cloud_serial Your inverter serial number (usually auto-detected)
days_previous List No [7] days_previous List of days to download data for, e.g., [7] for last week

Octopus Energy Direct (octopus)

Can be restarted: Yes

What it does (octopus)

Connects to your Octopus Energy account to automatically download your tariff rates, including support for dynamic tariffs like Agile and Intelligent Octopus. This ensures Predbat always has the most accurate and up-to-date energy pricing.

When to enable (octopus)

  • You're an Octopus Energy customer
  • You want automatic tariff updates
  • You're on a variable tariff (Agile, Intelligent Octopus, etc.)
  • You want to see your actual consumption data

Important notes (octopus)

  • Works with all Octopus tariffs including Agile and Intelligent Octopus
  • Automatically manages Intelligent Octopus smart charging slots
  • Updates rates automatically, no manual intervention needed

Configuration Options (octopus)

Option Type Required Default Config Key Description
key String Yes - octopus_api_key Your Octopus Energy API key
account_id String Yes - octopus_api_account Your Octopus Energy account number (starts with A-)
automatic Boolean No True octopus_automatic Set to true to automatically configure Predbat to use this Component (no need to update apps.yaml)

How to get your API credentials (octopus)

  1. Log in to your Octopus Energy account at https://octopus.energy
  2. Go to your account dashboard
  3. Find your API key (usually in Developer settings)
  4. Your account number is shown on your dashboard (format: A-XXXXXXXX)

Axle Energy VPP (axle)

Can be restarted: Yes

What it does (axle)

Connects to Axle Energy's Virtual Power Plant (VPP) [UK] service to receive and track demand response events. When Axle schedules export events, this component will track them and store the history for up to 7 days. The component publishes a binary sensor that turns on when an event is currently active.

If configured in Predbat's apps.yaml Predbat will control your inverter to export in response to the Axle event and adjusts the export energy rate to account for the extra payment from Axle.

Sign up with my referral code here: https://vpp.axle.energy/landing/grid?ref=R-VWIICRSA

Please note you are not allowed to be on Octoplus at the same time, so contact Octopus if you need to be removed from this scheme.

Select control my battery for 'Events Only'.

When to enable (axle)

  • You're enrolled in Axle Energy's VPP program and want Predbat to be aware of the scheduled events and plan for them.

Important notes (axle)

  • Polls the Axle API every 10 minutes for updates
  • Stores event history for up to 7 days
  • Events are added to history as soon as they start (become active)
  • Binary sensor (default name binary_sensor.predbat_axle_event) is on when an event is currently active, off otherwise
  • Current event details and event history are available as sensor attributes ('event_current' and 'event_history')
  • Alert notification sent when Predbat adds a new Axle VPP event to the Predbat plan
  • When axle_control is enabled (set to True in apps.yaml), Predbat will enter read-only mode during active VPP events (default is False)
    • Read-only mode prevents Predbat from controlling the inverter while VPP events are running
    • Status will show as "Read-Only (Axle)" when this feature is active

Configuration Options (axle)

Option Type Required Default Config Key Description
api_key String Yes - axle_api_key Your Axle Energy API key from the VPP portal
pence_per_kwh Integer No 100 axle_pence_per_kwh Payment rate in pence per kWh for VPP events
automatic Bool No True axle_automatic When enabled use the default Axle event entity name (binary_sensor.predbat_axle_event)
control Bool No False axle_control When enabled puts Predbat into Read-Only mode during Axle events

How to get your API credentials (axle)

  1. Log in to your Axle Energy VPP portal at https://vpp.axle.energy
  2. Navigate to the Home Assistant integration section
  3. Copy your API key
  4. Paste it into axle_api_key in apps.yaml

Sensor Attributes (axle)

The binary sensor binary_sensor.predbat_axle_event provides the following attributes:

  • event_current: List containing the current event (if any), with fields:
    • start_time: Event start time (timezone-aware datetime)
    • end_time: Event end time (timezone-aware datetime)
    • import_export: Event type ("import" or "export")
    • updated_at: Last update timestamp
    • pence_per_kwh: Payment rate for this event
  • event_history: List of past events (up to 7 days) with the same fields as above

SolaX Cloud API (solax)

Can be restarted: Yes

What it does (solax)

Connects directly to the SolaX Cloud API to control SolaX inverters and batteries. This allows Predbat to automatically set charge/discharge schedules, power limits, target SOC, and read real-time data from your inverter without requiring local Home Assistant integrations.

The component polls your SolaX Cloud account every minute for real-time data and every 30 minutes for device and plant information. It publishes comprehensive sensors for battery status, energy totals, and provides full control over charging and discharging schedules.

When to enable (solax)

  • You have a SolaX inverter (X1, X3, X3-Hybrid, or other cloud-connected models)
  • You want cloud-based control without local integrations
  • You have SolaX Cloud API credentials (client ID and secret)
  • You want automatic battery charge/discharge optimization
  • You want Predbat to read historical energy data directly from SolaX Cloud

Important notes (solax)

  • Requires valid SolaX Cloud API credentials (client ID and client secret)
  • Supports multiple plants/inverters with automatic discovery when solax_automatic: true
  • Region-specific API endpoints: EU, US, or CN
  • Authentication tokens are automatically managed (30-day expiry with auto-refresh)
  • Supports both residential and commercial installations
  • Control commands use time-window based scheduling (similar to GivEnergy)
  • Read-only mode available with solax_enable_controls: false
  • Compatible with Predbat's standard optimization algorithms

Configuration Options (solax)

Option Type Required Default Config Key Description
client_id String Yes - solax_client_id Your SolaX Cloud API client ID
client_secret String Yes - solax_client_secret Your SolaX Cloud API client secret
region String No 'eu' solax_region API region: 'eu', 'us', or 'cn'
plant_id String No None solax_plant_id Optional: Filter to specific plant ID
automatic Boolean No False solax_automatic Auto-configure all entities and inverters
enable_controls Boolean No True solax_enable_controls Enable inverter control (false for read-only)

Security Note: Store solax_client_id and especially solax_client_secret in secrets.yaml:

solax_client_id: !secret solax_client_id
solax_client_secret: !secret solax_client_secret

How to get your API credentials (solax)

  1. Log in to your SolaX Cloud account: - EU: https://www.solaxcloud.com - US: https://www.solaxcloud.us - CN: https://www.solaxcloud.com.cn
  2. Navigate to Settings → API Management (or Developer Settings)
  3. Create a new API application or view existing credentials
  4. Copy your Client ID and Client Secret
  5. Add to your secrets.yaml file
  6. Reference in apps.yaml using !secret notation

Published Entities (solax)

For each plant (replace {plant_id} with your actual plant ID), the component creates:

Battery Sensors:

  • Battery SOC (kWh)
  • Battery capacity (kWh)
  • Battery temperature (°C)
  • Battery max power (W)

System Sensors:

  • Inverter max power (W)
  • PV capacity (kWp)
  • Total PV yield (kWh)
  • Total battery charged (kWh)
  • Total battery discharged (kWh)
  • Total grid imported (kWh)
  • Total grid exported (kWh)
  • Total load (kWh, calculated)
  • Total earnings (currency)

Power Sensors (per inverter):

  • Charge/discharge power (W)
  • Grid power (W)
  • PV power (W)
  • AC load power (W)

Control Entities:

  • Battery reserve SOC (number, %)
  • Charge start/end times (select, HH:MM:SS format)
  • Charge target SOC (number, %)
  • Charge rate (number, W)
  • Charge enable (switch)
  • Export start/end times (select, HH:MM:SS format)
  • Export target SOC (number, %)
  • Export rate (number, W)
  • Export enable (switch)

Testing your configuration (solax)

You can test your SolaX Cloud API connection independently:

cd /config/appdaemon/apps/predbat
python3 solax.py --client-id YOUR_CLIENT_ID --client-secret YOUR_CLIENT_SECRET --region eu

This will authenticate, fetch all plants, devices, and real-time data, helping diagnose any connection or configuration issues.

Ohme Charger (ohme)

Can be restarted: Yes

What it does (ohme)

Integrates with Ohme EV chargers to monitor charging sessions and coordinate charging with your energy tariff. Works particularly well with Intelligent Octopus to optimize charging times and costs.

When to enable (ohme)

  • You have an Ohme EV charger
  • You want Predbat to factor in the charging plan within Ohme, this is mostly used with Octopus Intelligent GO.

Important notes (ohme)

  • Requires your Ohme account credentials
  • Can automatically manage Intelligent Octopus charging slots
  • Monitors real-time charging status and energy consumption

Configuration Options (ohme)

Option Type Required Default Config Key Description
email String Yes - ohme_login Your Ohme account email address
password String Yes - ohme_password Your Ohme account password
ohme_automatic_octopus_intelligent Boolean No - ohme_automatic_octopus_intelligent Set to true to automatically sync with Intelligent Octopus

Fox ESS API (fox)

Can be restarted: Yes

What it does (fox)

Integrates with Fox ESS inverters for monitoring and controlling Fox ESS battery systems. Similar to GivEnergy Cloud Direct, but for Fox ESS equipment.

When to enable (fox)

  • You have a Fox ESS inverter
  • You want direct API control of your Fox system
  • You have your Fox ESS API key

Important notes (fox)

  • Requires Fox ESS Cloud account and API key

Configuration Options (fox)

Option Type Required Default Config Key Description
key String Yes - fox_key Your Fox ESS API key
automatic Boolean No False fox_automatic Set to true to automatically configured Predbat to use the Fox inverter (no manual apps.yaml updates required)

Solis Cloud API (solis)

Can be restarted: Yes

What it does (solis)

Integrates with Solis inverters for monitoring and controlling Solis battery systems via the Solis Cloud API. Provides direct control of charge/discharge schedules, storage modes, and battery parameters.

When to enable (solis)

  • You have a Solis hybrid inverter with battery storage
  • You want direct API control of your Solis system
  • You have your Solis Cloud API credentials

Important notes (solis)

  • EXPERIMENTAL: This is a new integration and may have issues
  • Requires Solis Cloud account with API access
  • Battery size configuration: The Solis Cloud integration cannot automatically determine your battery size from the inverter. You can either:
    • Manually set soc_max in apps.yaml with your battery capacity in kWh (recommended), or
    • Leave soc_max unset and allow Predbat to automatically detect battery size from historical charging data (requires several days of data)
  • Supports both V1 (older firmware) and V2 (newer firmware) time window formats
  • Automatic configuration available - sets up all required Predbat sensors automatically

Configuration Options (solis)

Option Type Required Default Config Key Description
api_key String Yes - solis_api_key Your Solis Cloud API Key (KeyId)
api_secret String Yes - solis_api_secret Your Solis Cloud API Secret (KeySecret)
inverter_sn String/List No - solis_inverter_sn Inverter serial number(s) - Leave unset to see all. Single string or list of strings for multiple inverters
automatic Boolean No False solis_automatic Set to true to automatically configure Predbat to use the Solis inverter (no manual apps.yaml sensor updates required)
base_url String No Auto-detected solis_base_url Solis Cloud API base URL (automatically selects correct region)
control_enable Boolean No True solis_control_enable Enable/disable control commands (set to false for monitoring only)

Alert Feed (alert_feed)

Can be restarted: Yes

What it does (alert_feed)

Monitors weather alert feeds (MeteoAlarm) for severe weather warnings that might impact your energy usage or solar generation. Predbat can use this information to adjust its planning accordingly.

When to enable (alert_feed)

  • You want Predbat to be aware of weather alerts
  • You want to adjust battery strategy based on weather warnings
  • You're in an area with frequent severe weather

How it works (alert_feed)

  • Checks for alerts every 30 minutes
  • Processes weather warnings for your area
  • Can be configured with custom alert URLs and filters

Configuration Options (alert_feed)

Option Type Required Default Config Key Description
alert_config Dictionary Yes {} alerts Alert configuration including URL and filters

Configuration example

See the main configuration documentation for more details

Carbon Intensity API (carbon)

Can be restarted: Yes

What it does (carbon)

Retrieves current and forecast carbon intensity data for the UK electricity grid. This allows Predbat to make environmentally-conscious decisions, charging your battery when grid electricity is greener and discharging when it's more carbon-intensive.

When to enable (carbon)

  • You want to minimize your carbon footprint
  • You're interested in carbon-aware energy management
  • You're in the UK (uses UK National Grid data)
  • You want to see carbon intensity alongside cost optimization

How it works (carbon)

  • Uses your postcode to get regional carbon intensity data
  • Provides both current intensity and forecasts
  • Updates automatically throughout the day

Note: To use the carbon data in Predbat you also have to turn on switch.predbat_carbon_enable. If you want to optimise your plan for carbon then you also need to adjust the carbon weighting.

Configuration Options (carbon)

Option Type Required Default Config Key Description
postcode String Yes - carbon_postcode Your UK postcode for regional carbon intensity data
automatic Boolean No False carbon_automatic Set to true to automatically point Predbat to the carbon data

Managing Components

Checking Component Status

You can check the status of all components through the web interface:

  1. Open the web interface (default: http://your-ha-ip:5052)
  2. Navigate to the Components page (/components)
  3. View the status of each component: - Enabled/Disabled - Whether the component is configured - Running/Stopped - Current operational status - Healthy/Unhealthy - Whether the component is working correctly - Last Updated - When the component last successfully updated

Restarting Components

Most components can be restarted if they encounter problems:

  • Use the 'Restart' button on the Components page in the web interface
  • Or restart Predbat entirely to restart all components

Note: Core components (Database Manager, Home Assistant Interface, and Home Assistant History) cannot be restarted individually and require a full Predbat restart.

Editing Component Configuration

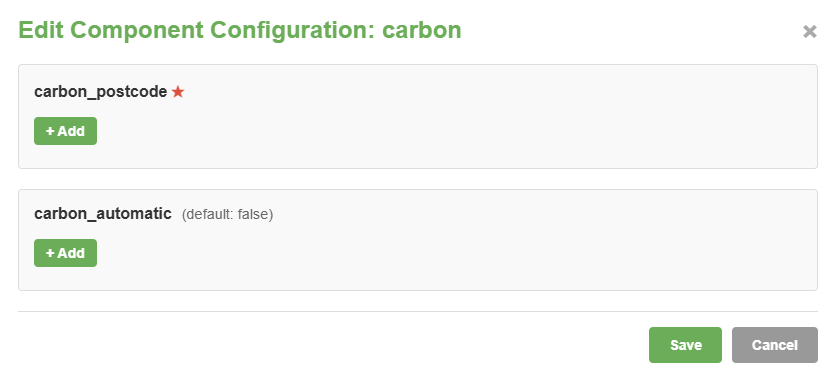

Click the Pencil icon next to a component to change the component configuration, e.g.:


Once you save the component configuration the changes will be written to apps.yaml and Predbat and all components will be restarted.

Component Health

A component is considered healthy when:

  • Its task is running
  • It has updated within the last 60 minutes
  • It reports no errors

If a component becomes unhealthy:

  1. Check your configuration in apps.yaml
  2. Verify API keys and credentials are correct
  3. Check network connectivity
  4. Review Predbat logs for error messages
  5. Try restarting the component
